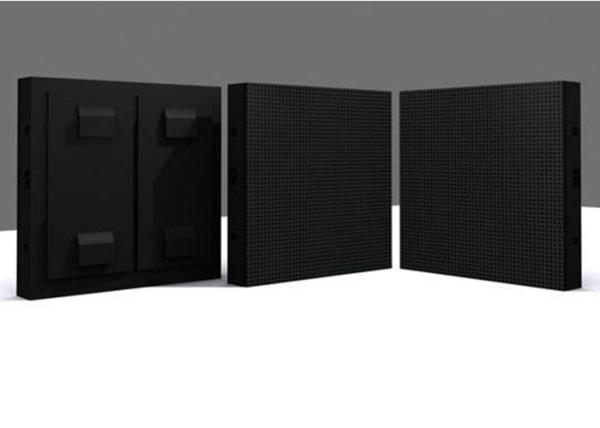

p16 OUTDOOR LED SIGN LED DISPLAY LED SCREEN
•Classical structure and long-term verification, solid and stable.
•Integrating LED and IC in 1 PCB, further improve stability and ability of heat radiation.
•Optional inner circuit, effectively reducing the influence of natural factors to line connection.
•Supporting MBI5035 IC and PFC power supply, energy saving up to 50%.
•Ideal parameter setting, effectively slowing down the speed of brightness and color reduction.
•Module double power and signal input, double insurance for working stability.
| Model | Q16 |
| Pixel pitch(mm) | 16mm |
| Configuration | SMD 3535 |
| Module dimension(mm) | 256mm*256mm |
| Module weight(kg) | 0.5 |
| Cabinet dimension(mm) | 1024mm*1024mm |
| Pixel density(dots/㎡) | 3906 |
| Flatness error(mm) | ≤0.1 |
| Viewing angle | 140°/140°(Horizontal/Vertical) |
| Brightness(cd/㎡) | 8000 |
| Color temperature(K) | 5000~9500 (Adjustable) |
| Contrast | 4000:1 |
| Repetition frequency | 50/60Hz |
| Refresh frequency(Hz) | 1920 |
| Gray scale | 65500 |
| Ave. power(W/㎡) | 500 |
| Max power(W/㎡) | 1000 |
| Working temp./humidity | -10~40℃/10%~80%RH |
| Storing temp./humidity | -20~60℃/10%~85%RH |
| Cabinet material | Iron |
| Maintenance | Rear |
| Protection | IP65/IP67 |
| Driving mode | Constant current driver |
| Scanning | 1/4 1/8 |
| Power requirements | AC90~264V, 47~63Hz |
| Life time(hrs) | 100,000 |

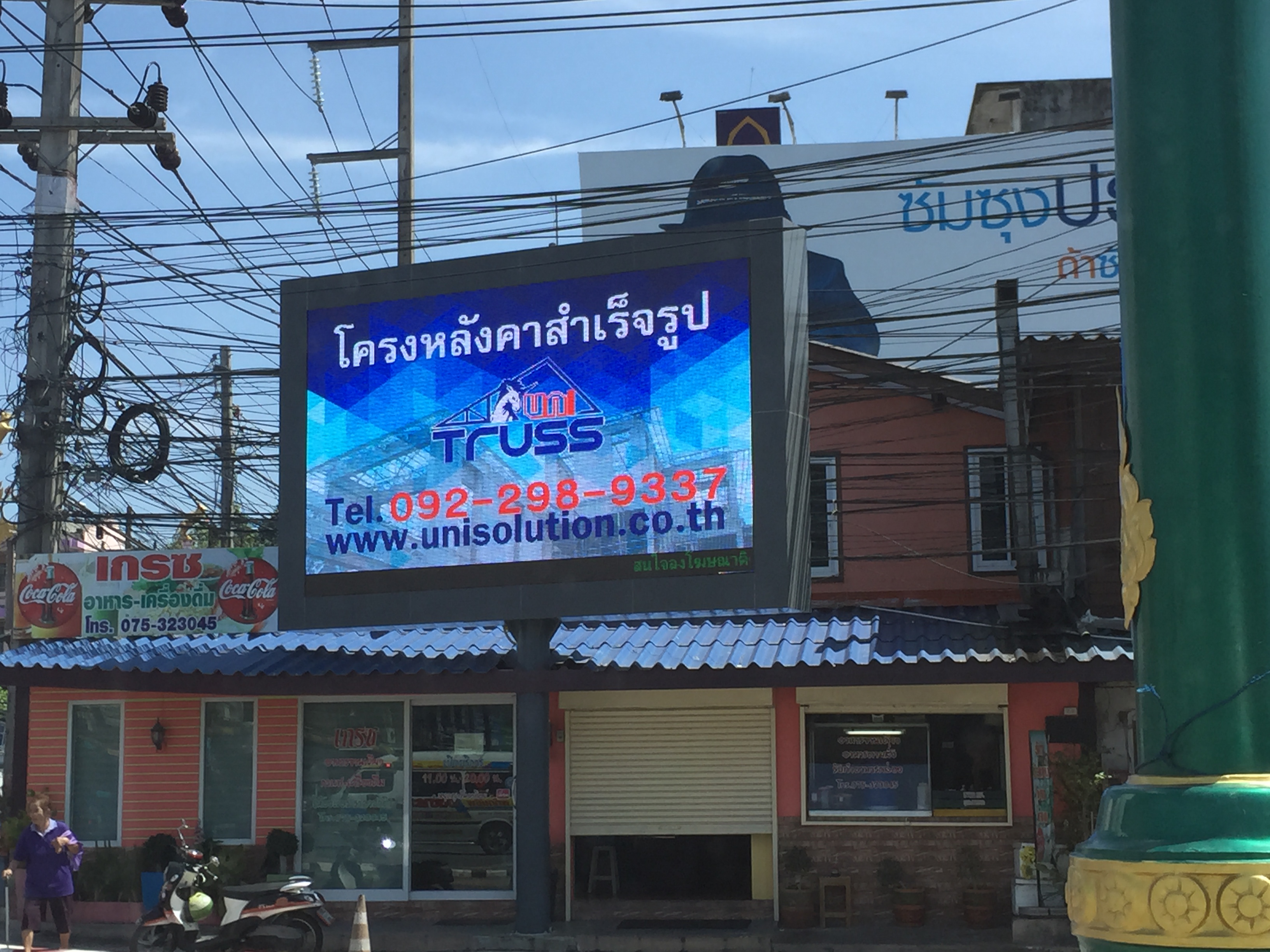

Advantages OF Q6 Outdoor Advertising LED Display Screen
1. Lecede Q16 has Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is
suitable for wide horizontal.
2. Lecede Q16 has Error detection and monitoring: it can monitor the inner temperature, voltage,
cooling fans etc and make error detection automatically.
